Audio-Technica Now Shipping New AT5047 Cardioid Condenser Microphone

	Audio-Technica AT5047 Cardioid Condenser Microphone

Audio-Technica, a provider of transducer technology for over 50 years, is now shipping its new AT5047 Cardioid Condenser Microphone. The most recent addition to A-T's acclaimed 50 Series (which also includes the AT5040 vocal microphone and AT5045 instrument mic), the AT5047 is a premier studio microphone that features the same capsule as the AT5040 but with a transformer-coupled output and optimized electronics. It is equally at home capturing instruments and vocals.

Boasting an exceptionally wide dynamic range -- the widest among all Audio-Technica microphones -- the AT5047 captures the full, expressive character of a sound source, no matter how loud or how soft. And since it is equipped with a transformer-coupled output, the microphone maintains a constant load output impedance, even when capturing sources at extreme SPL, resulting in a stable relationship between the mic and a mic preamp or console input.

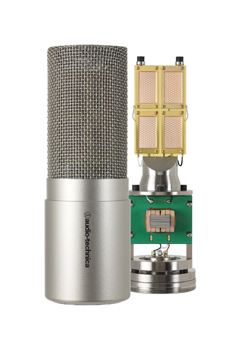

The AT5047 features four rectangular two-micron-thick diaphragms, which function together to provide a combined surface area twice that of a standard 1" circular diaphragm. Discrete components have been carefully selected and optimized for maximum performance and compatibility with a wide array of microphone preamps and console inputs. Advanced internal shock mounting decouples the capsule from the microphone body, and the included advanced-design AT8480 shock mount provides superior isolation.

With an elegant, durable housing of aluminum and brass, each AT5047 has been hand-assembled and inspected for 100-percent quality control. A custom hard-shell carrying case with die-cut foam compartments offers protection during storage and transport.

AT5047 specifications:
* Element: Fixed-charge back plate, permanently polarized condenser
* Polar pattern: Cardioid
* Frequency response: 20Hz to 20,000Hz
* Open circuit sensitivity: -29dB (35.5mV) re 1V at 1Pa
* Impedance: 150 ohms
* Maximum input sound level: 148dB SPL, 1kHz at 1-percent T.H.D.
* Noise: 6dB SPL
* Dynamic range (typical): 142dB, 1kHz at max SPL
* Signal-to-noise ratio: 88dB, 1kHz at 1Pa
* Phantom power requirements: 48V DC, 2.7mA typical
* Weight: 592g (20.9oz)
* Dimensions: 165.3mm (6.51'') long, 57.0mm (2.24'') maximum body diameter
* Output connector: Integral three-pin XLRM-type
* Accessories furnished: AT8480 shock mount for 5/8"-27 threaded stands; 3/8" to 5/8" stand adapter; protective carrying case

The AT5047 is now available.
