GIS Extends LP Electric Chain Hoist Series for the Entertainment Industry

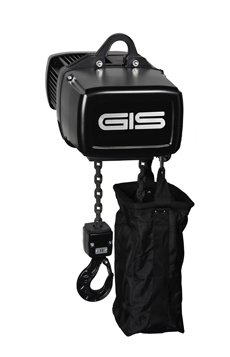

The new LP1000 electric chain hoist for the entertainment industry has a lifting capacity of 1.6 tons with one chain fall (D8 hoist).

In the year of its 60th anniversary, Swiss electric chain hoist manufacturer GIS AG has launched LP1000, the latest model in its new LP series of electric chain hoists developed and adapted to the needs of the entertainment industry.

The LP series was introduced at the start of 2017 with the successful launch of the LP500 model, and replaced the LCH series. The LP electric chain hoist series offers a low dead weight at 12kg only for 320kg lifting capacity, quiet running at 65db and a built-in motor that offers a speed up to 32m/min. A 60-[ercent increase in lifting capacity with one chain fall (D8 hoist) is offered across the LP series, alongside a substantially increased life cycle compared to the corresponding chain hoist with the previous lifting capacity, up to four times depending on the application.

LP1000 has a lifting capacity of 1.6 tons with one chain fall (D8 hoist), an increase of 60-percent but with the same service life and switching frequency as the previous model.

The self-contained, helical-cut, three-stage gear with permanent lubrication ensures considerably quieter operation. The powerful built-in motor with high reserve capacity guarantees excellent synchronizing in group rides. The motor features permanent grease lubrication, while there is a proven DC spring-loaded brake and dry-running slipping clutch.

The whole chain thread is equipped with a static security factor of at least eight (ISO M5/FEM 2m). This reduces the wear of the components and extends their life cycle. In comparison with a conventional round steel chain, the case-hardened and manganese-phosphated profile steel chain offers an increased lifting capacity of 15-percent with the same nominal diameter.

During development, particular attention has been given to modularity and low maintenance with good accessibility to wear parts. All shaft-hub connections are designed in a self-centering polygonal design. This means disassembly and assembly during maintenance work is carried out faster and without special tools, which reduces service costs.

The LP series is available as BGV D8, D8 Plus, and C1 versions, or in country-specific or customized variants. Incremental and absolute encoder for distance measurement, load sensor, external limit switch, carrying handles and further accessories can be added without difficulty to the standard D8 version. The second independent DC spring-loaded brake for the D8 Plus and C1 models can be mounted on the existing shaft.

IP65 protection is included as standard and guarantees dust tightness and protection from water jets.

All GIS LP series electric chain hoists come with an extended warranty of up to three years.

Addressing successes since the launch of the LP series, Erich Widmer, GIS AG sales and marketing manager, says: "LP500 has been received excellently by the market due to its outstanding features. We have new distributors who have won larger projects or sold bigger numbers of electric chain hoists to rental companies."

To match high demand for the new LP series of electric chain hoists, GIS AG increased its production capacity by 20-percent in 2017 and will increase it further in 2018.


(5 December 2017)
