d&b Installation Solutions Took Center Stage in Amsterdam

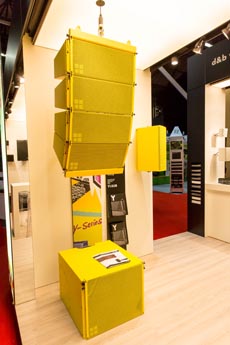

	d&b audiotechnik's Y-Series display at ISE.

Identifying the right sound reinforcement system to permanently install in a club, church, or multipurpose space, requires a solution that will produce the highest quality audio reproduction today, tomorrow, and for the years to come. The company says a loudspeaker system from d&b audiotechnik will do just that and more, as ISE visitors discovered at the d&b stand and demo room last week in Amsterdam.

"d&b is continuously expanding its portfolio for the installation markets. To support the requirements of our global installation customers we have put significant effort into product development, to provide pro audio solutions for opera houses, theatres, or large music venues; wherever the highest quality of sound is required. Throughout this year we will introduce a number of new, high performance installation products to the market, to underline d&b's focus on these applications," says d&b CEO, Amnon Harman.

Designed with quintessential d&b utility and flexibility in mind, the new Y-Series offers both point source and line array loudspeakers. The installation specific Yi7P and Yi10P point source and the Yi8 and Yi12 line array loudspeakers each feature two 8" drivers with neodymium magnets mounted in a dipolar arrangement around a 1.4" compression driver. These Yi variants are designed for permanent applications, differing from the mobile Y7P, Y10P, Y8, and Y12 only in cabinet construction and mounting hardware. All models are passively crossed over to keep amplifier channels to a minimum.

The Yi7P/Y7P and Yi10P/Y10P offer 75-degree x 40-degree and 110-degree x 40-degree (h x v) dispersion characteristics respectively, while rotatable horns and multiple rigging options enable either vertical or horizontal mounting. Complimenting the Y-Series point sources, the high performance Bi6-SUB/B6-SUB subwoofers house a long excursion 18" driver built into a bass-reflex design with a frequency response down to 37Hz. The Yi8/Y8 and Yi12/Y12 line array loudspeakers offer 80-degree and 120-degree (h x v) respectively, with horizontal dispersion control down to 500Hz. The arrayable Yi-SUB/Y-SUB are actively driven cardioid subwoofers powered by a single amplifier channel, extending frequency response down to 39Hz.

Specifically developed by d&b for the installation market, the xA-Series, xS-Series, and xC-Series were at ISE, exhibiting their clean, unobtrusive design. The mechanically arrayable xA-Series comprises four loudspeakers and two subwoofers and features an integrated rigging system, while the xS-Series, intended for stand alone applications, incorporates specialized hardware fittings to deliver a flexible choice of mounting options for the installer. For those really aesthetically sensitive spaces, the xC-Series column loudspeakers provide sound reinforcement solutions in an elegant and sophisticated design.

"ISE was a great opportunity to meet with installers, consultants, and customers and demonstrate d&b's ability in installation markets. Recent projects at Frankfurt Opera and Zorlu's Performing Arts Centre in Istanbul, highlight the effectiveness of d&b systems in permanent environments. As we continue to strengthen our portfolio for permanent applications we show how serious d&b is about offering fully integrated solutions," says Harman.
